See Bed Bathymetry Sonar Specification

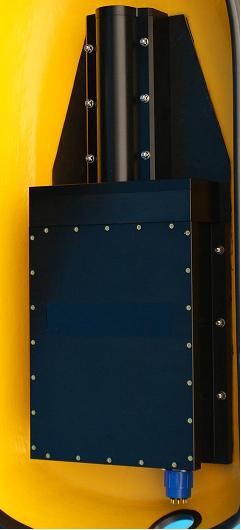

The Transmit and Receive Transducer arrays are arranged in an inverted “T” configuration. The transmitter and receive electronics are mounted within the arrays with the digital sonar data being transferred to the control / display computer over a fiber optic link.

The sonar scans a horizontal sector of 90 degrees to a 1.5 degree resolution and a vertical sector of 20 degrees to a 1 degree resolution simultaneously for every “ping” of the transmitter.

Operating at up to 30 swaths per second data is collected and displayed in real time the data being corrected with the addition of an external motion reference unit and GPS. The sonar housing is manufactured of aluminium and hard anodised to allow the unit to be operated to 500m depth. An optional 3000m depth unit is available manufactured in stainless steel.

Data collected by the sonar head is transferred to the operating PC, running under windows, over a video link and connected to the computer via the USB interface unit supplied. The data can also be output to most software packages used to display bathymetry data. Command and control data to the sonar head can be either RS232 or RS485 at 19200 baud.

The user friendly PC software running under windows provides all the controls for the sonar on screen and displays the sonar image plus history of the selected white line trace.

Transducer Array

Operating Frequency:
No. of Beams:
Angular Swath Width
Receive Beamwidth Across track:

Receive Beamwidth Along Track:

Transmit Beamwidth Across track

Transmit Beamwidth Along Track:

Range Resolution @ 10m:
Transmit Pulse:
Range settings:
Update Rate:

250Khz
64 or 128
90º or 120º
1.5º for 64 beams, 1º for 128 beams

1.5º


1.5º


120º


35mm
42us to 1ms range dependant
5 – 100 meters
30fps @ 10m, 7fps @ 100m

18V DC to 36V DC
Fiber Optic
RS485 19200 baud
640 x 260 x 90mm ( 64 beams )
18Kg
500m
