Mini Pipe Profiling Sonar - 2512 USB Specification

The resolution and update speed of the Model 2512 Pipe Profiling Sonar is second to none in the field of mechanically scanned sonar’s. The 2MHz acoustic signal is amplified and logarithmically compressed prior to being digitised by a Flash A/D converter.

The angular resolution of the system is 0.9° which gives 400 sectors per revolution. For each sector the data is over sampled and peak detected to arrive at 250 range cells.

The digitally generated graphics display uses 256 colours to represent the signal amplitude. At a minimum full-scale range of 125mm this gives a range resolution of 0.5mm and at 2m range the resolution is 8mm.


The acoustic beamwidth of 1.8° ensures that the finest detail from the pipe surface is recorded. Pitch and Roll sensors inside the scanner record the attitude of the sonar to a resolution of 0.1°.

The sonar has been engineered for extended operations in hostile environments. The transducer and drive motor are totally enclosed in an oil-filled pressure balanced housing which is hermetically sealed from the stainless steel electronics pod.

The system has many applications other than inside pipes where short range high precision measurements are required with a rapid screen update.

Marine Electronics Model 2512 Mini Profiling Sonar:

Software Features

Display Modes:



Range Settings (mm):

Range Settings (in):
Range Resolution:

Angular Resolution:
Minimum Range:
Tx Pulse Length:
Display Resolution:
Colour Control:


ASCII Output:

Autostart:




Viewer Program:


Operating System:



Polar - full 360 degree coverage
Sector - 30° to 270° arc width at
30° to 330° centre angles in 30° steps
125, 187, 250, 375, 500, 750,
1000, 1500, 2000
5, 7.5, 10, 15, 20, 30, 40, 60, 80
1/250 of full scale range
eg. 0.5mm at 125mm
0.9 degrees
50mm
Variable 4usec to 20usec
400 sectors of 250 range cells
8bit multiple palletes with min,
max and step control to optimise
dynamic range
NMEA style profiling string via
RS232
May be used autonomously
without keyboard, mouse or
display for remote data capture
when it is not possible to use a
cable
A seperate viewer program is
available to allow clients to post
process and print stored images
Windows '98, ME, 2000, NT, XP

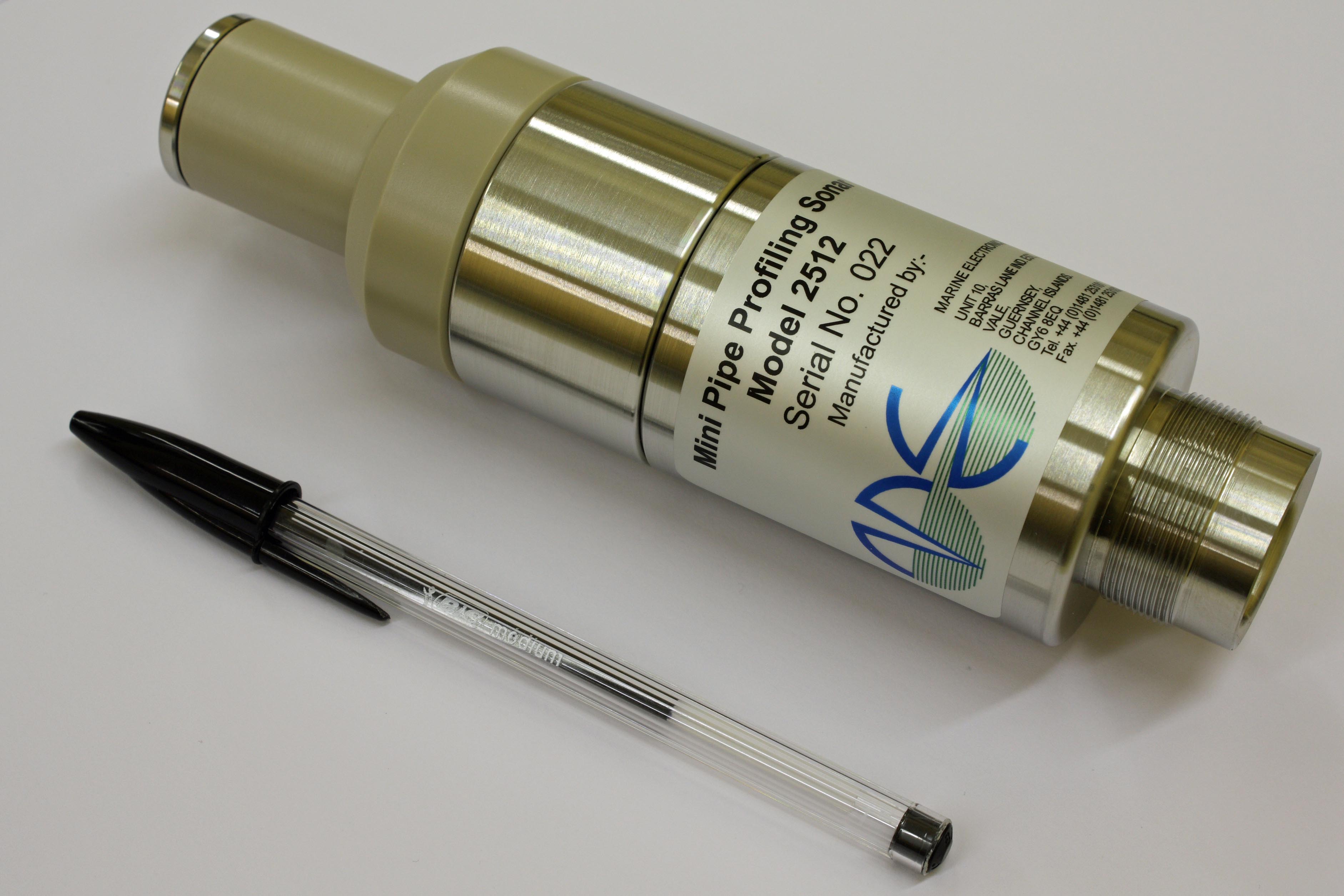

Underwater Unit

Acoustic Frequency:
Beam Width:
Receiver:
Bandwidth:
Pitch/Roll Sensors:


Power Requirements:
Overall Length:
Diameter:
Finish:


Operating Depth:
Operating Temp:
Storage Temp:
Weight in Water:
Weight in Air:

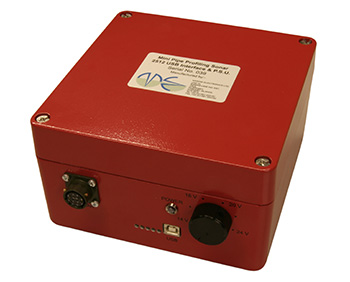

USB Interface

Protocols:
Cable Payout Input:
Power Requirements:

Dimensions:



2MHz
1.8 degrees conical
Logarithmic
500kHZ
Micromachined accelerometers
resolution 0.1 degrees

+14VDC at 1A maximum
178mm
50mm
Stainless Steel 316 with
polyurethane transducer
housing
100m
+5°C to +40°C
0°C to +70°C
0.4kg
0.75kg






USB 1.1 and USB 2.0
+5V quadrature or Pearpoint
+5VDC at 200mA typical (self-
powered from USB port)
Width: 110mm
Depth: 165mm
Height: 35mm


Options Include:

  • AC to DC power Supply with USB Interface Unit
  • Cable drum with slip rings (various lengths)
  • Fibre-optic modules for extended cable length
