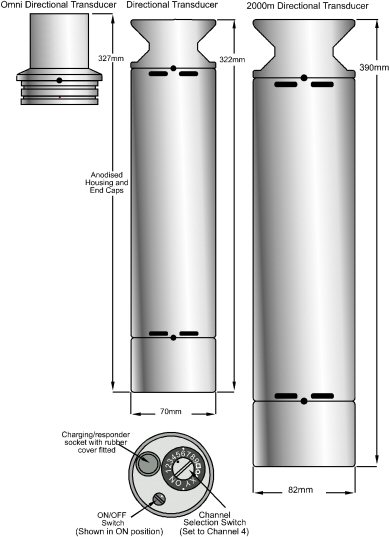

Transponder / Responder ME7656 Specification


Specifications:


Channels:
Repetition Rate:
Battery Type:
Charging Time:

Quiescent Life:
Temperature:

Rx Sensitivity:
External Power:
Weight: 1000m

Weight: 2000m

Operating Depth:
Tx Pulse Length:
Rx Bandwidth:
Turnaround Delay:
Responder Trigger:

Tx source Level:



Tx Beam Pattern:


No. of Replies:





1 to 9 and ΘΔXY
Maximum 2 per second
NimH 18V at 1.2AH
3 Hours using charger type
ME7656NMH
1month
Operating: 0 to +50°C
Storage: -20 to +65°C
10ÁV r.m.s.
+22V to +30V DC
Air: 1.85kg
Water: 0.7kg
Air: 3.1kg
Water: 1.0kg
1000m to 2000m (option)
10msec
400Hz (+/-3dB)
30msec
>2msec +5V pulse
(>+4V inhibits reciever)
Directional: 190dB re 1ÁPa @ 1m
Omni-Directional: 187dB re 1ÁPa @ 1m
Directional: +/-45° Conical
Omni-Directional: +/-90° Doughnut
70,000
